X-ray Single Crystal Orientation System
Quantum Design

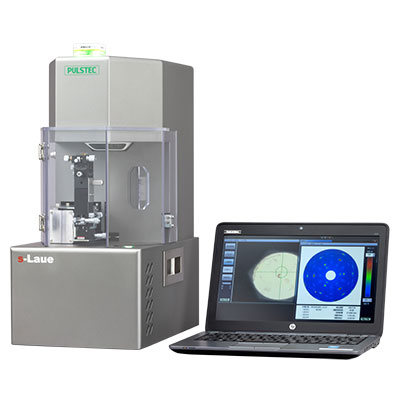

Quantum Design introduces a benchtop X-ray single crystal orientation system manufactured by Pulstec Industrial Co., Ltd. The s-Laue system consists of an X-ray generator, cooling system, Laue camera, sample stage and safety enclosure. Different than many traditional systems of this kind, the unique design of the s-Laue places all of these components into a single benchtop unit, providing high efficiency for single crystal orientation work.Applications
- Measuring principle plane orientation
- Checking and adjusting cutting orientation
- Evaluating crystallinity
- Analyzing processing-related crystal growth
Features
- Easy sample setting: Sample stage attachment and XYZ sample position adjustment via an integrated microscope and CCD camera.
- Quick to measure: Acquire single crystal orientation Laue image within 80 seconds after sample has been set.
- All-in-one unit: Air-cooled X-ray generator, high-sensitive detector, sample stage, and power supply in one compact unit.
- Safe X-ray operation: X-ray incidence is vertical downward, no safety box is required.
Specifications
- X-ray source: W (Tungsten)
- Voltage/Current: 30 kV/1.5 mA
- Incident angle: 0 degrees
- Irradiation spot: ?0.8 mm
- Measurement time: 80 secs
- Sample distance: 27 mm
- Sample stage: 6 axis (?/Tan./Rad./X/Y/Z)
- Cooling: Air cooling
- Dimensions: (W) 224 mm x (D) 414 mm x (H) 480 mm
- Weight: Approx. 30kg
- Power: AC 100?240 V, 50/60 Hz
- Power consumption: 150 W max
- Software: X-ray control / sample stage / Laue image
